Edge Coating Agent for Metal Substrates

Scaling/Non-scaling 2 agent types to choose

Full automation of etching process that masking tapes were applied manually before.

“Why can't we reduce the time and cost of applying masking tapes?” ENATECH Edge Coating Agent for metal substrates gives you a perfect solution to such an inquiry. Only by automatically applying the agent to the substrate edges it gives the same effect as masking tapes, protecting the substrate edges from corrosion. This new technology brings about an efficient placement of workers and, therefore, a significant cost-down.

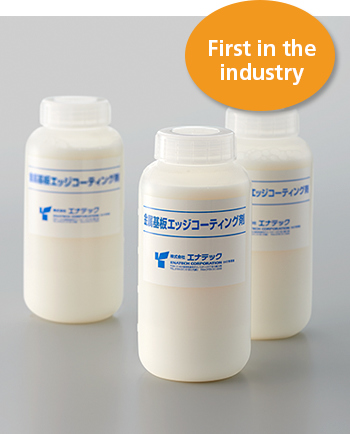

First in the industry/Edge coating agent for metal substrates

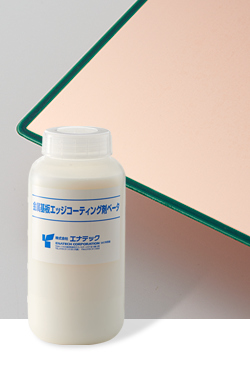

Before coating/After coating

Characteristics

  • •The processes of applying and tearing off tapes, and removing adhesive will not be necessary any more.
  • •The equipment can replace all the manual works by full automation.
  • •VOC regulations and RoHS compliances are conformed.
  • •The agent becomes solid under dry condition at about 70 ℃ for 1 minute.
  • •Water-soluble emulsion resin with safe polyester system, solvent-free
pagetop

Masking effect is also exerted on gold-plating unnecessary parts.

Edge coating agent for metal substrates

Edge Coating Agents exhibits a good resistance even in nickel-gold plating process. The coating prevents of gold plate adhesion on unnecessary parts and outflow of dusts generated in the interior mounted substrates. In addition, the result of the agent durability test on electroless Ni/Au plating has confirmed that the Edge Coating Agent will not be scaled off in the preparation and plating processes.

Coating width by Automatic Coating Equipment is about 1 - 10 mm. Coating thickness can be adjusted about 20 - 150 μm.

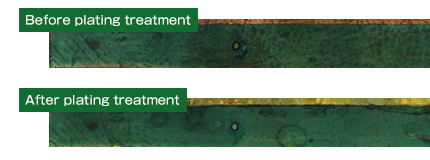

Before plating treatment/After plating treatment

Sufficient resistance even in the etching process

It gives full resistance in the developing process using alkaline solvents, even in the etching process using strong acidic solvent, completely protecting the parts applied.

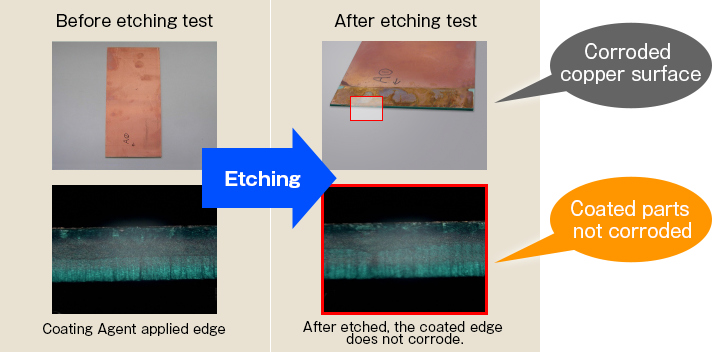

Before etching test/After etching test
